CYCLONE MAX
Button
START /
AUX /
MENU / [SELECT]
CANCEL
RESET
Function
Start executing the tasks pre-configured into the
Cyclone MAX.
Menu Mode: Navigate upwards in LCD menu.
Perform auxiliary function (stand-alone verification).
Menu Mode: Navigate downwards in LCD menu.
Displays LCD Menu (enters Menu Mode).
Menu Mode: Select highlighted item in LCD menu.
Cancel the tasks being executed and go back to the
standby state.
Hardware reset of the Cyclone MAX.
3.13
3.14
LEDs
Eight LEDs are used to provide programming and Cyclone MAX status:
1. Power – Indicates power has been supplied to Cyclone MAX
2. Ready – The Cyclone MAX is ready to perform programming functions
3. Image – Indicates the presence of one or more images on board.
4. Erase – Erasing of target flash is in progress
5. Program – Programming of target flash is in progress
6. Verify – Verifying of target flash is in progress
7. Error – An error occurred during programming
8. Success – Programming functions completed successfully
Ribbon Cable with IDC Socket

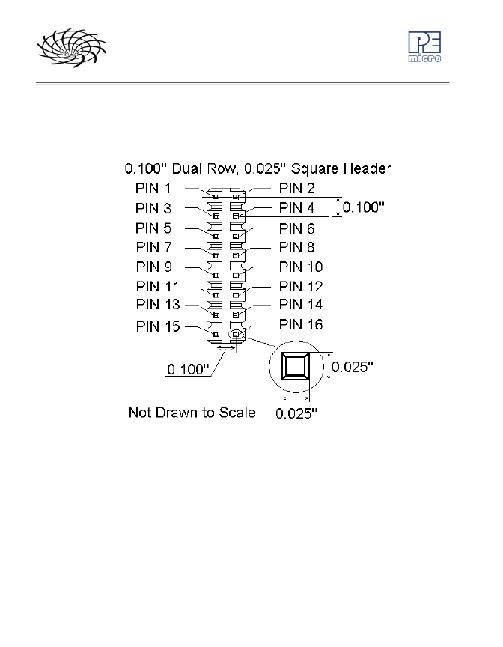

The Cyclone MAX provides several standard 0.100-inch pitch dual row 0.025-
inch square headers (Ports A-F, as described earlier in Section 3 -
CYCLONE MAX HARDWARE ). A typical layout for one such header is
shown below. Using these headers, the Cyclone MAX can communicate with
the target through a number of different-sized ribbon cables. Each of the
ribbon cables have a 0.100-inch centerline dual row socket IDC assembly (not
keyed). The ribbon cables are designed such that the Cyclone MAX Ports and
Cyclone MAX User Manual
17
